High Efficiency Plastic Compounding Machine Co Rotating Twin Screw Extruder
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Cenmen Equipment |
| Certification: |
CE,ISO9001 |
| Model Number: |
TSB、TSH、TSS |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
Negotiation |
| Packaging Details: |
20GP, 40HC,40HQ |
| Delivery Time: |
50 work days |
| Supply Ability: |
300 units per year |
Contact Now
Detailed Product Description
| Name: |
Co-Rotating Twin Screw Extruder |
Screw Diameter: |
25-75mm |
| Torque Level: |
5-8 |
L/D: |
32-48 |
| Screw Speed(Max.): |
400-600rpm |
Capacity: |
10-500kg/h |
| High Light: |
twin screw extrusion machine, double screw extruder machine |

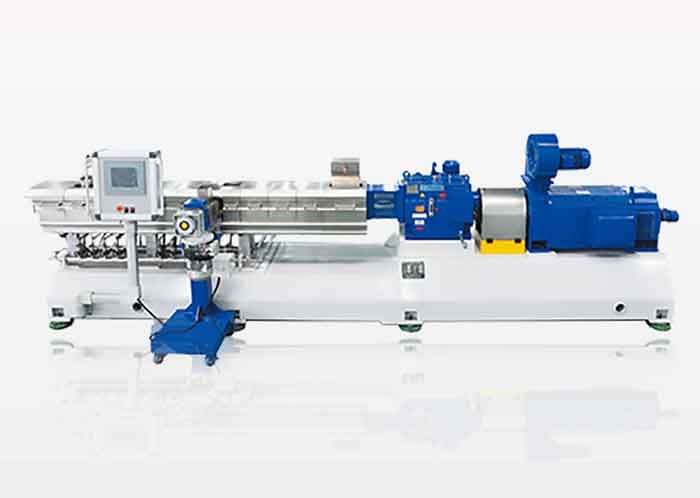

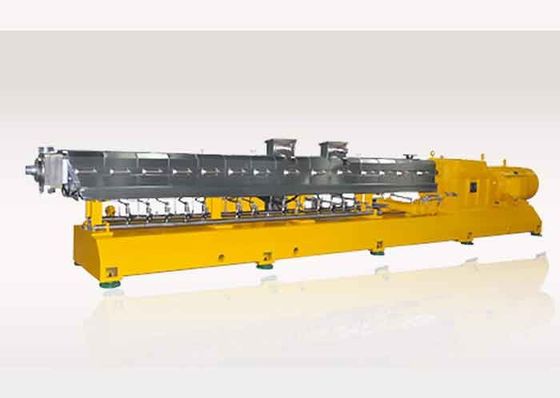

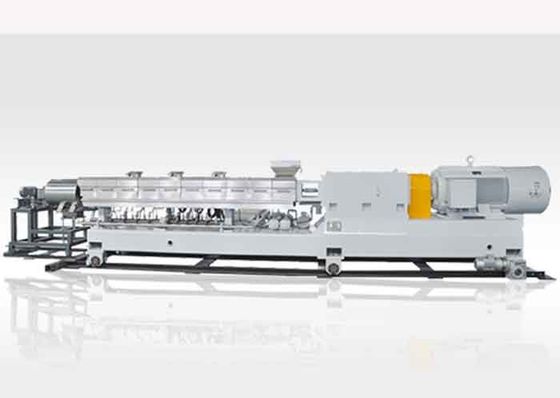

TSB/TSH/TSS Series Plastic Twin Screw Compounding Extruder Series
Technical Data for TSB / TSH / TSS Twin Screw Extruder:
| 型号 |
公称直径
D(mm)
|
长径比
(L/D)
|
主电机功率
(kw)
|
螺杆转速
(rpm)
|
最大扭矩
(N.m/Shaft)
|
扭矩等级
(T/A3)
|
参考产量
(kg/h)
|
| TSH |
15 |
15 |
36-66 |
2.2 |
500 |
20 |
8.8 |
0.5-8 |
| TSH |
25 |
26 |
36-66 |
7.5-15 |
400-800 |
86 |
8.1 |
5-60 |
| TSB |
35 |
36 |
32-68 |
15-30 |
500-800 |
173 |
6.4 |
10-90 |
| TSH |
36 |
32-68 |
22-37 |
500-800 |
229 |
8.5 |
20-150 |
| TSS |
36 |
32-68 |
30-45 |
500-800 |
275 |
10.2 |
50-200 |
| TSB |
40 |
41 |
32-68 |
22-37 |
400-800 |
252 |
6.1 |
65-150 |
| TSH |
41 |
32-68 |
37-55 |
500-800 |
344 |
8.4 |
110-230 |
| TSS |
41 |
32-68 |
45-75 |
500-800 |
430 |
10.5 |
135-375 |
| TSB |
52 |
52 |
32-68 |
45-75 |
500-800 |
429 |
5.4 |
135-300 |
| TSH |
52 |
32-68 |
75-110 |
500-800 |
688 |
8.6 |
225-500 |
| TSS |
52 |
32-68 |
90-160 |
500-800 |
900 |
11.3 |
270-600 |
| TSB |
65 |
62 |
32-68 |
90-132 |
500-800 |
860 |
5.9 |
250-550 |
| TSH |
62 |
32-68 |
132-200 |
500-800 |
1222 |
8.7 |
400-800 |
| TSS |
62 |
32-68 |
160-250 |
500-800 |
1467 |
10.4 |
480-1000 |
| TSB |
75 |
72 |
32-68 |
132-200 |
500-800 |
1261 |
5.8 |
400-800 |
| TSH |
72 |
32-68 |
200-280 |
500-800 |
1910 |
8.8 |
600-1200 |
| TSS |
72 |
32-68 |
250-355 |
500-800 |
2407 |
11.1 |
750-1600 |
| TSB |
85 |
82 |
32-68 |
200-220 |
500-600 |
1834 |
5.9 |
600-1000 |
| TSH |
82 |
32-68 |
280-355 |
500-600 |
2674 |
8.6 |
800-1600 |
| TSS |
82 |
32-68 |
355-400 |
500-600 |
3255 |
10.5 |
1000-1800 |
| TSB |
95 |
92 |
32-68 |
315-355 |
500-600 |
2887 |
6.1 |
840-1600 |
| TSH |
92 |
32-68 |
450-550 |
500-600 |
4202 |
8.9 |
1350-2750 |
| TSS |
92 |
32-68 |
550-650 |
500-600 |
5043 |
10.6 |
1650-3250 |
| TSB |
115 |
116.5 |
32-68 |
400-560 |
400-550 |
4600 |
5.3 |
900-2800 |
| TSH |
116.5 |
32-68 |
630-800 |
400-550 |
7200 |
8.2 |
1600-3500 |
| TSB |
125 |
126 |
32-68 |
560-710 |
400-500 |
6400 |
5.7 |
1450-3100 |
| TSH |
126 |
32-68 |
800-900 |
400-500 |
9170 |
8.2 |
2000-4000 |
| TSB |
135 |
133.5 |
32-68 |
630-800 |
400-500 |
7400 |
5.6 |
1900-3500 |
| TSH |
133.5 |
32-68 |
1000-1250 |
400-500 |
11460 |
8.6 |
3000-5600 |
| TSB |
150 |
150 |
32-68 |
710-1120 |
300-500 |
10850 |
5.6 |
2100-5000 |
| TSH |
150 |
32-68 |
1000-1800 |
300-500 |
16500 |
8.5 |
3000-8000 |
