Rigid PVC Compounding Double Screw Extruder Machine Large Capacity

Rigid PVC Compounding Double Screw Extruder Machine Large Capacity

Rigid PVC Compounding Double Screw Extruder Machine Large Capacity

Product Details:

Place of Origin: China
Brand Name: Cenmen
Certification: CE, ISO9001
Model Number: SDJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 20GP, 40HC,40HQ
Delivery Time: 60 work days
Supply Ability: 300 units per year
Contact Now
Detailed Product Description
Voltage: 380V 50HZ 3Phase(Customized) Condition: New
Application: Piping, Fittings Screw Design: Double-screw,Single-screw
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training Plastic Processed: PVC
Raw Material: PVC Power/Pellets And Caco3 Capacity: 500-2000KG/H
High Light:

co rotating twin screw extruder


twin screw extrusion machine

Configuration & Features

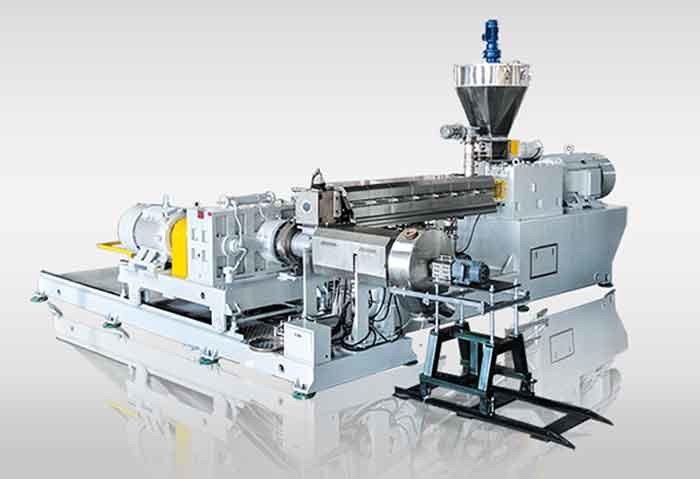

Up-stage is the twin screw extruder, compounding and extruding the material inside, then free falling into down-stage larger size single screw extruder for compression, low speed, cooling down extruding pelletizing, the two-stage installed to vertical “T” type.


Twin screw is for conveying, high efficiency compounding and shearing dispersing, no counter pressure because of no die head, which avoid temperature peak and ensure high output. Single screw is for cooling and high pressure, low speed extruding and pelletizing.


Excellent compounding effectiveness and high output, because of two stage design.



Heat sensitivity polymers material processing, such as PVC cable compounds, transparent material, PE cross linking compound, PE shielded cable and foam material for shoes etc.

Technical Data of SDJ Series Two-stage (Twin screw/Single screw) Extruder Unit

Model Screw Dia. (mm) Screw Speed (rpm) L/D Motor Power (kw) Output (kg/h)
SDJ-65/150 TSB-65 61.5 400 28-36 55-75 245-350
SE-150 150 65 7 37-45
SDJ-75/180 TSB-75 71.5 400 28-36 90-110 420-560
SE-180 180 65 7 45-55
SDJ-85/200 TSH-85 81.5 400 28-36 200-250 700-1050
SE-200 200 65 7 75-90
SDJ-95/220 TSH-95 91.4 400 28-36 400-550 1050-2450
SE-220 220 65 7 90-110
SDJ-115/300 TSH-115 115.5 400 28-36 710-800 2100-2450
SE-300 300 65 7 185-200
