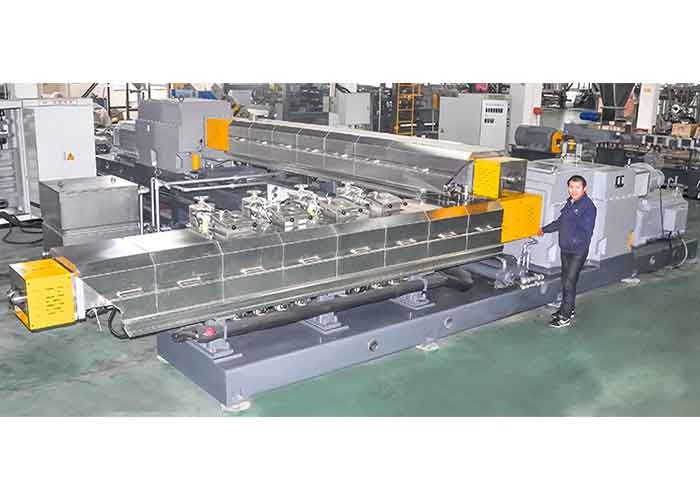

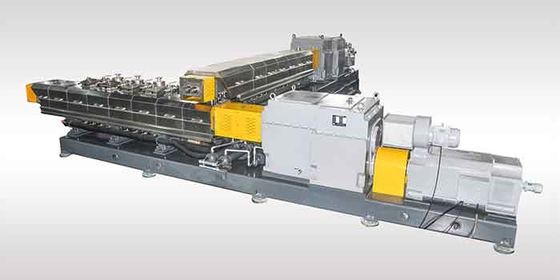

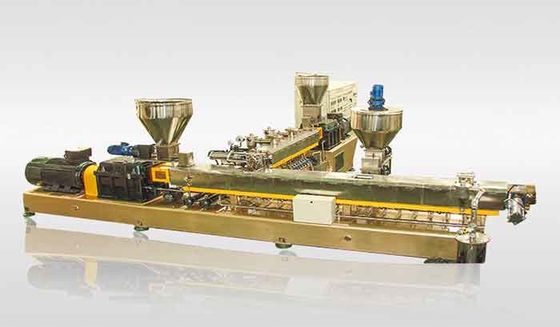

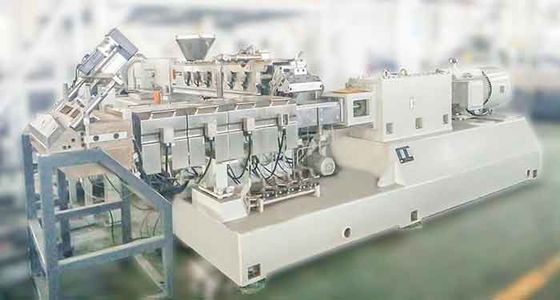

TSR Series Reactive Twin Screw Compounding Extruder High Efficiency Stable Working

TSR Series Reactive Twin Screw Compounding Extruder High Efficiency Stable Working

    • TSR Series Reactive Twin Screw Compounding Extruder High Efficiency Stable Working
    • TSR Series Reactive Twin Screw Compounding Extruder High Efficiency Stable Working
    • TSR Series Reactive Twin Screw Compounding Extruder High Efficiency Stable Working
    • TSR Series Reactive Twin Screw Compounding Extruder High Efficiency Stable Working
  • TSR Series Reactive Twin Screw Compounding Extruder High Efficiency Stable Working

    Product Details:

    Place of Origin: China
    Brand Name: Cenmen Equipment
    Certification: CE,ISO9001
    Model Number: TSR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: 20GP, 40HC,40HQ
    Delivery Time: 50 work days
    Supply Ability: 300 units per year
    Contact Now
    Detailed Product Description
    Name: Co-Rotating Twin Screw Extruder Screw Diameter: 25-85mm
    Torque Level: 5-8 L/D: 32-56
    Screw Speed(Max.): 400-600rpm Capacity: 10-500kg/h
    High Light:

    co rotating twin screw extruder

    ,

    twin screw extrusion machine

    TSR Series Reactive Twin screw extruder unit



    In some complex process requirements of mixing extrusion, due to the raw materials or additives on the initial state, processing temperature, shear rate, material pressure and other processing conditions are quite different, there are mutual constraints, and even contradictory technological requirements. However, the screw speed of a single twin-screw extruder is the same, the temperature region between adjacent cylinders affects each other, and the establishment of pressure, the input of energy can not be realized independently completely according to the technological requirements. Therefore, separate the links with great difference in process requirements and complete on two extruders respectively, so as to eliminate the interaction between the functional areas. According to the two twin-screw extruders in the upper and lower stages of the specific process, they can be arranged differently on many parameters, such as screw L/D, screw rotation speed, extrusion pressure, screw outer diameter size and so on, so as to complete a complex extrusion process.



    Typical application:

    • Thermal sensitive materials (crosslinker, foaming agent, etc.) or materials with large processing temperature: up stage, high temperature high rotation speed, completes compounding; down stage, adding low temperature material/additives, finishes compounding at low rotation speed, low temperature.
    • Devolatilization exhaust material: Up stage extruder finishes compounding extrusion, reaction extrusion or dissolved swelling extrusion at atmospheric pressure or micro positive pressure; Down stage extruder equipped with several vacuum exhaust chamber finishes devolatilization treatment to solvent or volatile matter at low rotation speed, high vacuum condition.
    • Long glass fiber reinforced material: up stage compounds resin, additives and filler, etc uniformly at high rotation speed; down stage added glass fiber, and disperses glass fiber uniformly at low rotation speed, so as to longer retain the length of the glass fiber.
    • silicone adhesive, etc multi-component, difficult-to-disperse material: up stage extruder equipped with multiple powder and liquid addition area mainly completes the addition and preliminary mixing of multi-component raw materials. Down stage extruder equipped with strong compounding screw structure completes the deep dispersion and mixing of each group of raw material.

    Case description:



    No. Equipment production line Equipment type Product field
    1

    PET/HTPE/LDP;

    Alloy co-compounding pelletizing production line

    SSJ twin screw/twin screw two stage extruder unit



    Engineering plastic and components



    2 LFT compounding extrusion on-line molding and forming production line SSJ twin screw/twin screw two stage/cutting and conveying intelligent robot/oil pressure forming machine

    Automobile, transportation, construction, animal husbandry and other industries.



    3 Reaction compounding devolatilization extrusion production line SSJ twin screw/twin screw two stage extruder unit

    Aramid fiber, ultra-high molecular weight polyethylene spinning
