|Place of Origin:
|Minimum Order Quantity:
|100 sets per year
|380V 50HZ 3Phase(Customized)
|After-sales Service Provided:
|Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training
pvc cable extruder machine,
cable manufacturing equipment

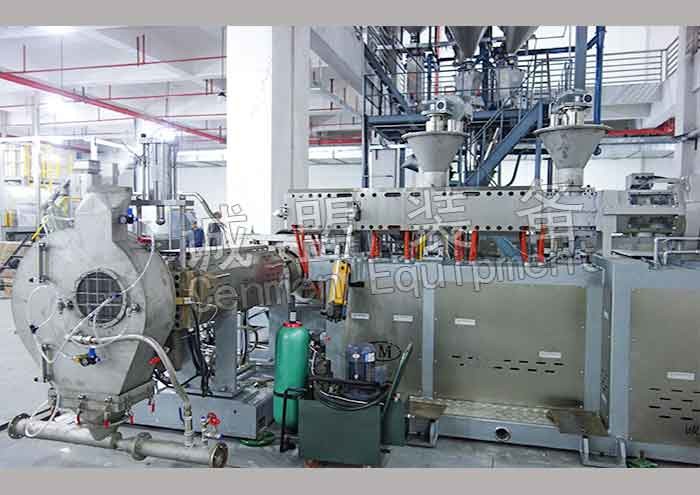

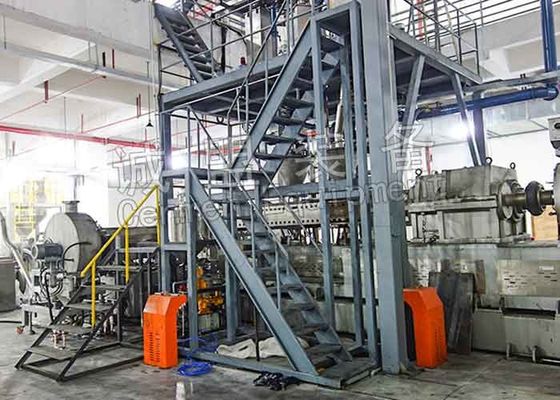

Semicon Shield cable compounding extrusion pelletizing
1. The production process is continuous and the degree of automation is high. The whole production process of semicon shield cable material is a kind of continuous production process, which completes the whole production process from raw material to finished product particles. The conveying, weighing and feeding of raw materials and compounding pelletizing of the process are controlled automatically to improve the production efficiency and reduce the labor cost.
2. The production link is more environment-friendly. The raw material supply link in production adopts the weight loss electronic scale to feed according to the proportion, and the automatic feeding and transportation system. The storage, metering and transportation of raw materials are connected by pipes and valves, which can effectively reduce the dust pollution in the production workshop. At the same time, the fully closed production process effectively prevents the external impurities from mixing into the product, which is beneficial to the electrical stability of the product.
3. The product quality is stable and suitable for extrusion cable. The raw material supply and compounding pelletizing link of reciprocating extruder are a kind of continuous and automatic production process. The distribution ratio of each raw material group is accurate, the dispersion is uniform, the cable material produced is more stable in mechanical properties, electrical properties, apparent and so on, and the fluctuation of volume resistance is less than 15 Ω. Cm.
4. Good mixing and dispersion effect, special flexible compounding mechanism. The conductive carbon black is dispersed evenly in the resin, thus improving the physical and conductive properties of the cable material. The material is subjected to instantaneous high frequency shear, tension and split flow effect, so it has excellent mixing effect of dispersion and distribution, and the mixing effect is more than 20 times of that of twin-screw extruder.
5. The energy consumption ratio is reduced and the power of the equipment host is greatly reduced. The above special flexible mixing principle makes it have excellent mixing and dispersion effect and lower energy consumption ratio at the same time, and it can reduce the energy by more than 20% at the same output compared with the twin-screw extruder.
6. High working volume, resulting in a significant increase in production. The screw and barrel of reciprocating mixing extruder have higher working volume and can maintain high extrusion output. At the same time, the intermittent screw interacts with the pin to make it have a good self-cleaning effect.
It is widely used in Jiangsu Yixing, Taicang and Shanghai, Hebei, Guangdong districts, at the same time exproted to Russia, Vietnam, etc.
